PILON
STRIKER
Two configurations. Every mission profile covered.
Classical high-wing platform for long-range patrol and heavy payload — or compact V-tail for rapid catapult deployment and silent strike. Both share a unified avionics stack and payload interface.
Two Airframe Configurations
Pilon-Striker is offered in two distinct aerodynamic platforms — each optimised for different operational profiles and mission ranges.
Conventional Tail
Horizontal stabiliser + vertical fin
Classical
High-wing, twin-boom platform with conventional tail surfaces. Maximum payload and range for long-duration patrol, logistics, and deep-strike missions.
Payload
20 kg
Range
500+ km
Endurance
8 h
MTOW
< 100 kg
Speed
95 km/h
Wingspan
3.5 – 5.2 m
DLE-120 · 2-stroke · 120 cm³ · 12 HP · AI-95 gasoline
V-Tail (Butterfly)
Two control surfaces angled in V
V-Tail
Compact butterfly-tail platform with catapult launch. Available in gasoline and electric powertrain variants — optimised for rapid deployment and silent operation.
Payload
10 kg
Range
300+ km
Endurance
6 h
Wingspan
3.5 m
Electric variant: Range 120+ km · Endurance 2.5 h · Turnaround < 30 min · Silent operation · Hot-swap batteries
DLE-60 / DLE-70 · AI-95 gasoline | or High-efficiency electric motor
Shared Avionics
ArduPilot / PX4 — full mission autonomy on both platforms
Unified Payload Bay
Standardised latching/release interface across all variants
Catapult Launch
Both platforms support catapult or short-runway takeoff
Built for Combat.
Engineered to Prevail.
Pilon-Striker combines the aerodynamic efficiency of a fixed-wing platform with the mission flexibility of a loitering munition — delivering decisive strike capability at the tactical edge.
Precision Strike
Engineered for high-accuracy terminal engagement. Optimized flight dynamics ensure reliable impact on designated targets with minimal collateral deviation.
Catapult Launch
Rapid deployment via portable catapult system. No runway required — operational from any terrain in under 10 minutes. Bungee or pneumatic launch options available.
Extended Endurance
Fixed-wing aerodynamics deliver superior loiter time compared to multirotor platforms — sustaining patrol and strike readiness over extended operational windows.
Real-Time ISR
Integrated electro-optical payload for intelligence, surveillance, and reconnaissance. Live feed to ground control station for operator-in-the-loop target confirmation.
Low Signature
Optimized airframe and propulsion design minimizes acoustic and radar cross-section. Approaches targets with reduced detection risk in contested airspace.
Field-Maintainable
Modular construction enables rapid field assembly, maintenance, and payload swapping by forward-deployed teams without specialized depot support.
Variant Comparison
Full specification matrix across all three Pilon-Striker configurations.
| Parameter | ClassicalConventional tail | V-Tail · Gas⛽ DLE-60 / DLE-70 | V-Tail · Electric⚡ Electric motor |
|---|---|---|---|
| Airframe | High-wing, twin-boom | V-tail, pusher prop | V-tail, pusher prop |
| Wingspan | 3.5 – 5.2 m | 3.5 m | 3.5 m |
| MTOW | < 100 kg | — | — |
| Payload | 20 kg | 10 kg | 10 kg |
| Range | 500+ km | 300+ km | 120+ km |
| Endurance | 8 h | 6 h | 2.5 h |
| Cruise Speed | 95 km/h | — | — |
| Powertrain | DLE-120 (120 cm³, 12 HP) | DLE-60 / DLE-70 | Electric motor |
| Fuel | AI-95 | AI-95 | Traction batteries |
| Turnaround | Standard | Standard | < 30 min |
| Hot-swap Battery | N/A | N/A | Yes |
| Launch | Catapult / Short-runway | Catapult | Catapult |
| Autopilot | ArduPilot / PX4 | ArduPilot / PX4 | ArduPilot / PX4 |
| Comms | 900 MHz BLOS | 900 MHz BLOS | 900 MHz BLOS |
| Best For | Long-range patrol / ISR | Mid-range strike / patrol | Urban ops / rapid deploy |
Full technical specifications available to qualified defence contractors and military procurement officers upon execution of NDA.
System Gallery
Field photography of both airframe configurations — runway, catapult launch system, and operational deployment.

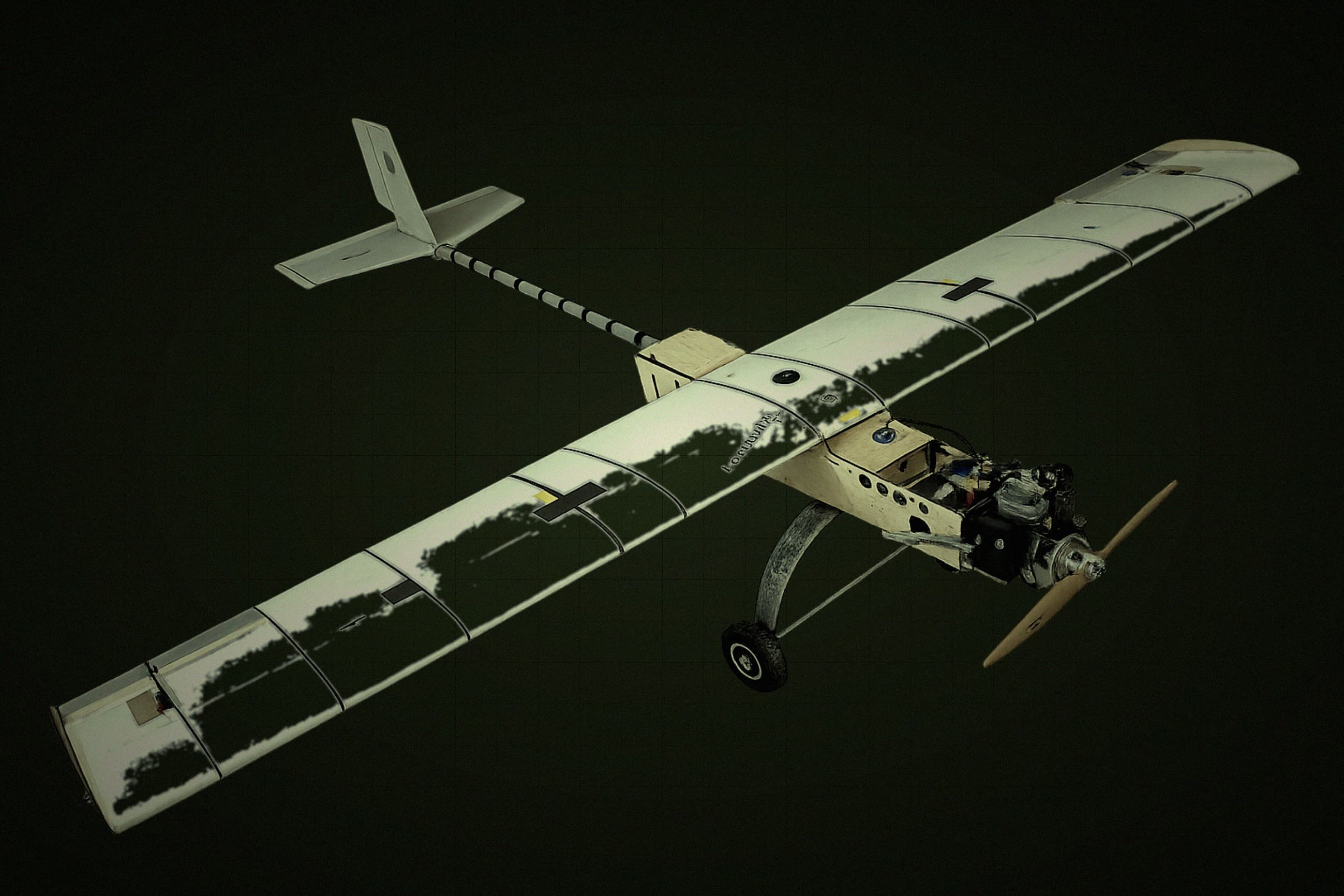

Classical — high-wing, conventional-tail platform overview

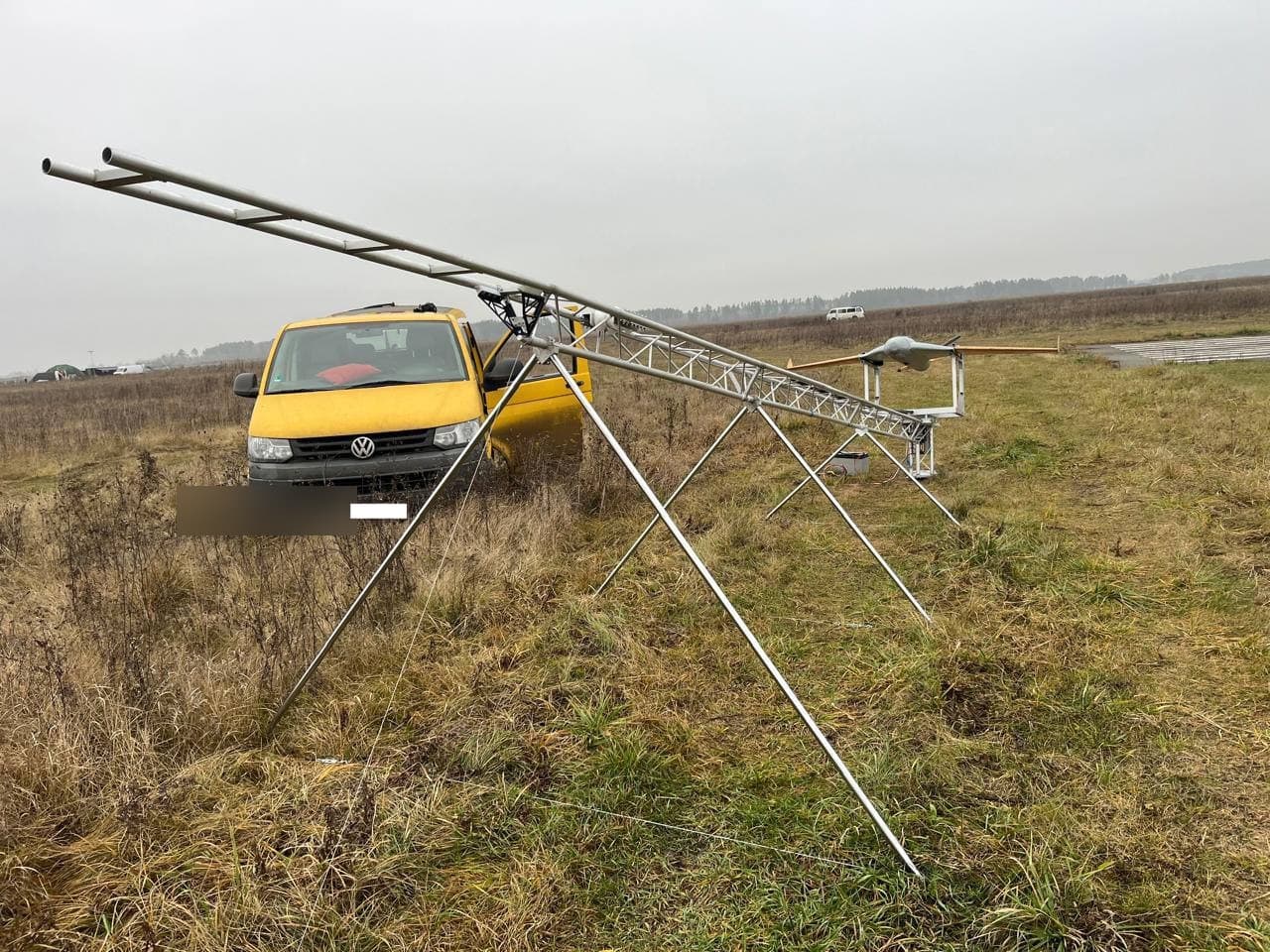

Classical — van-mounted catapult, long-range deployment

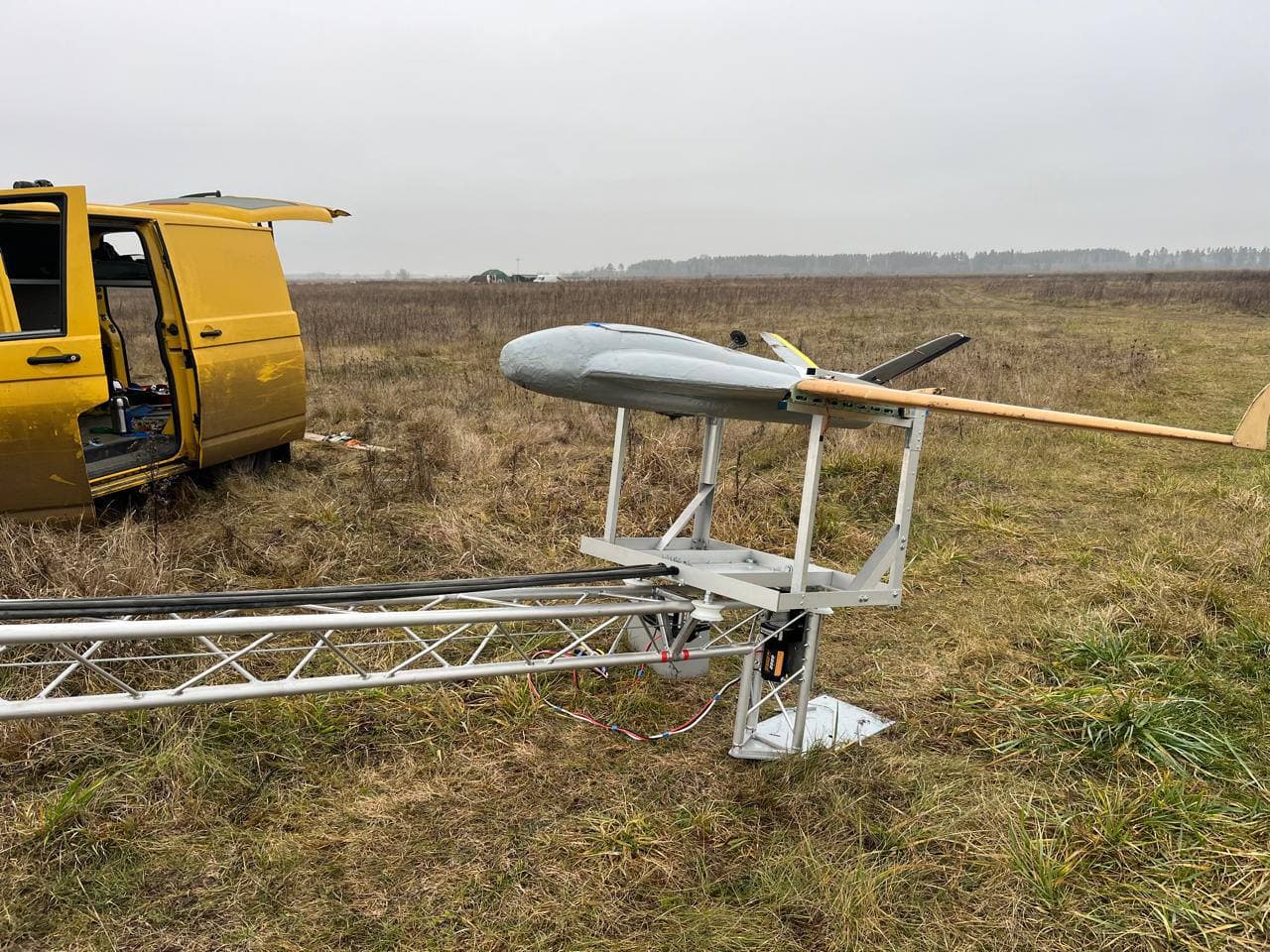

Classical — platform on launch rail, field deployment

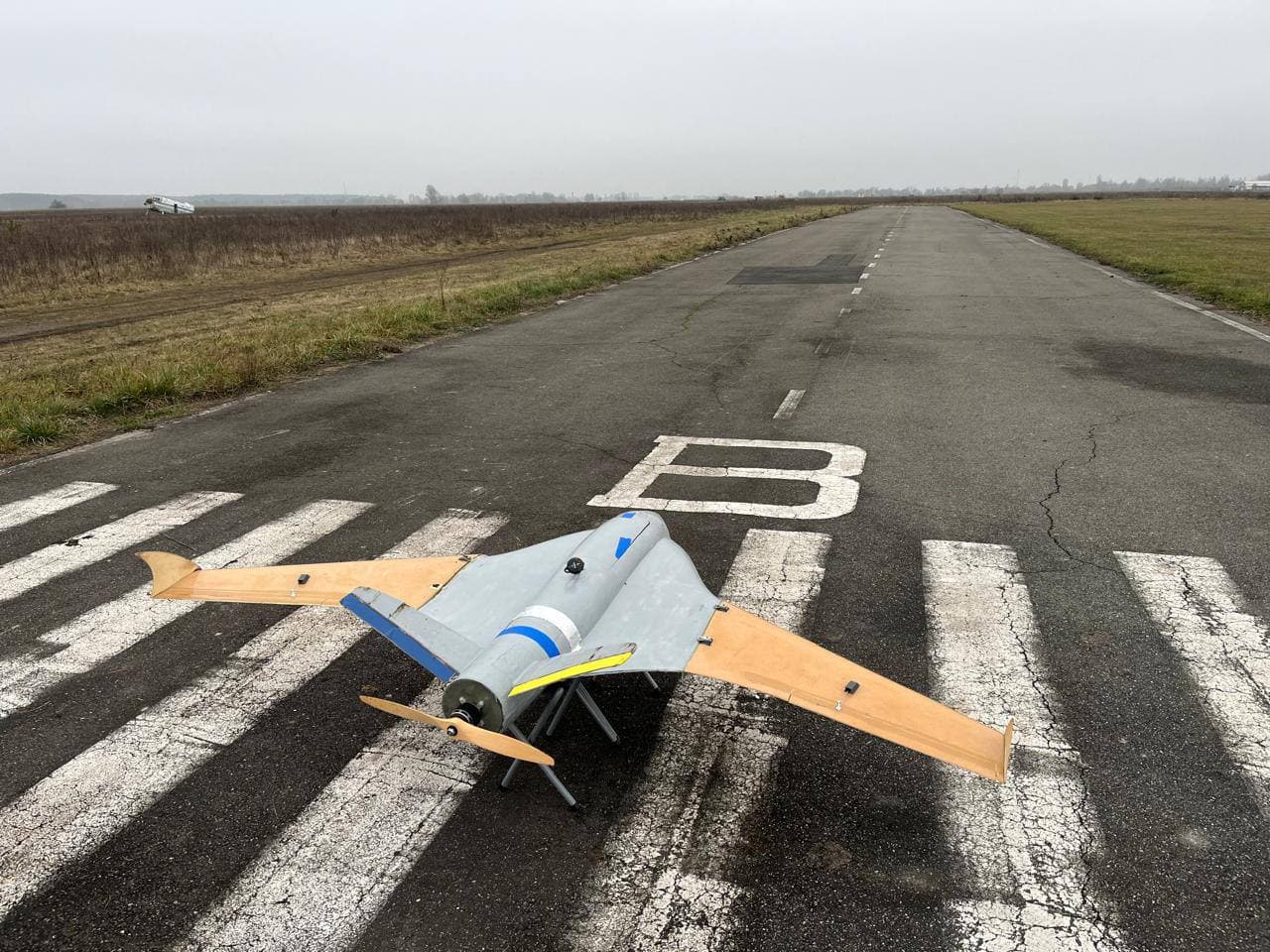

V-tail — pre-flight position on runway

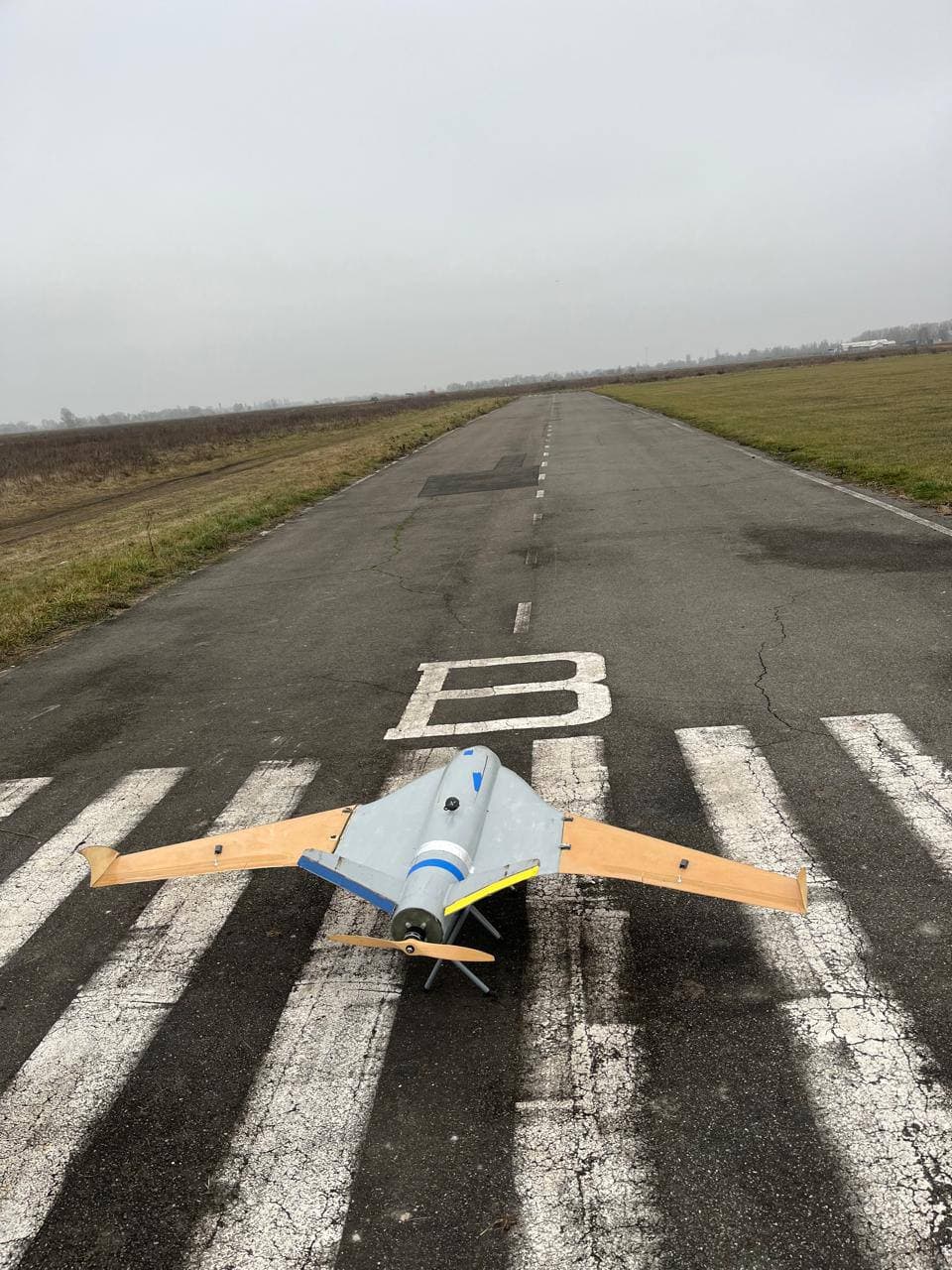

V-tail — top-down runway view, butterfly tail visible

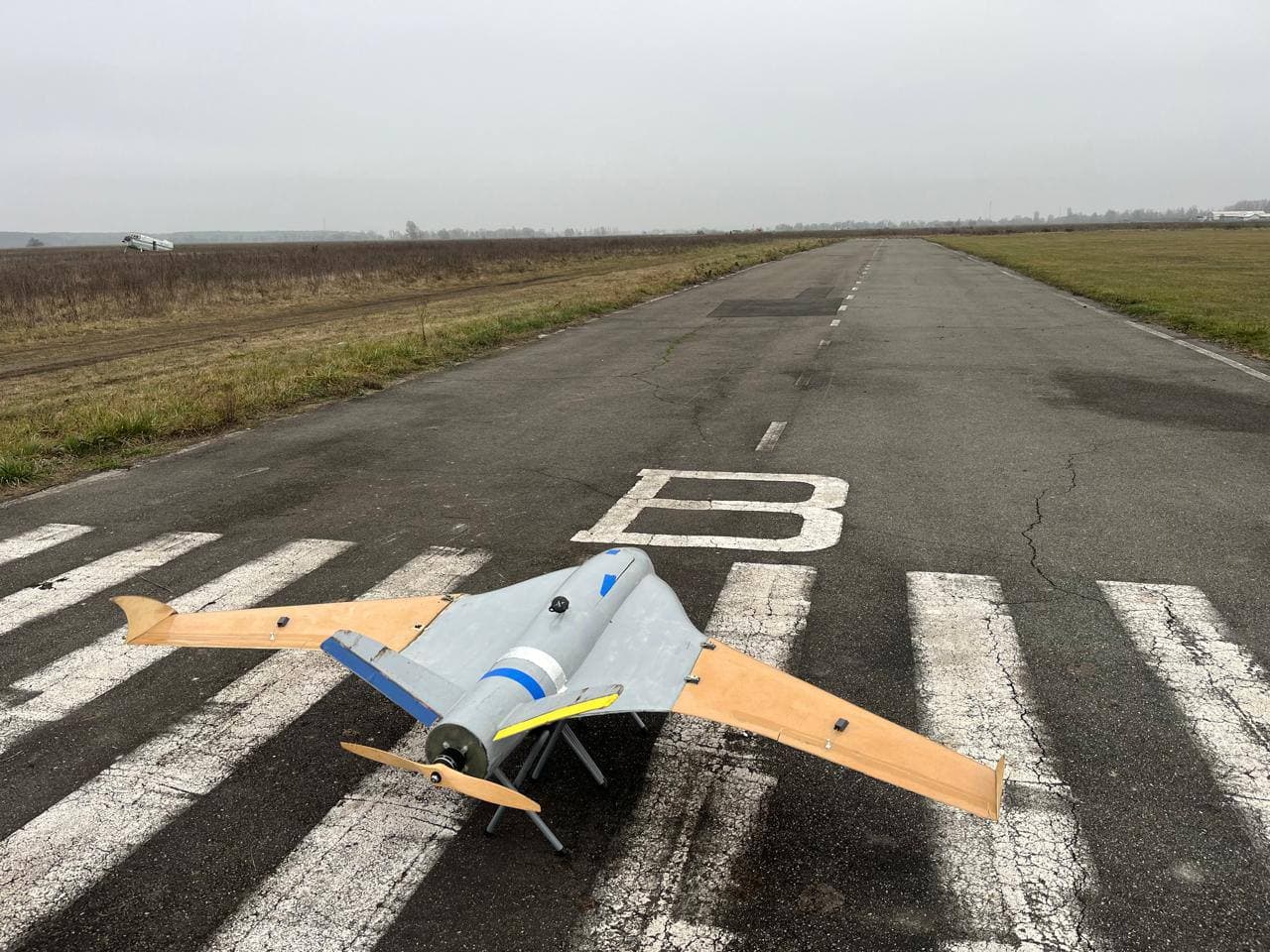

V-tail — rear view showing V-tail control surfaces

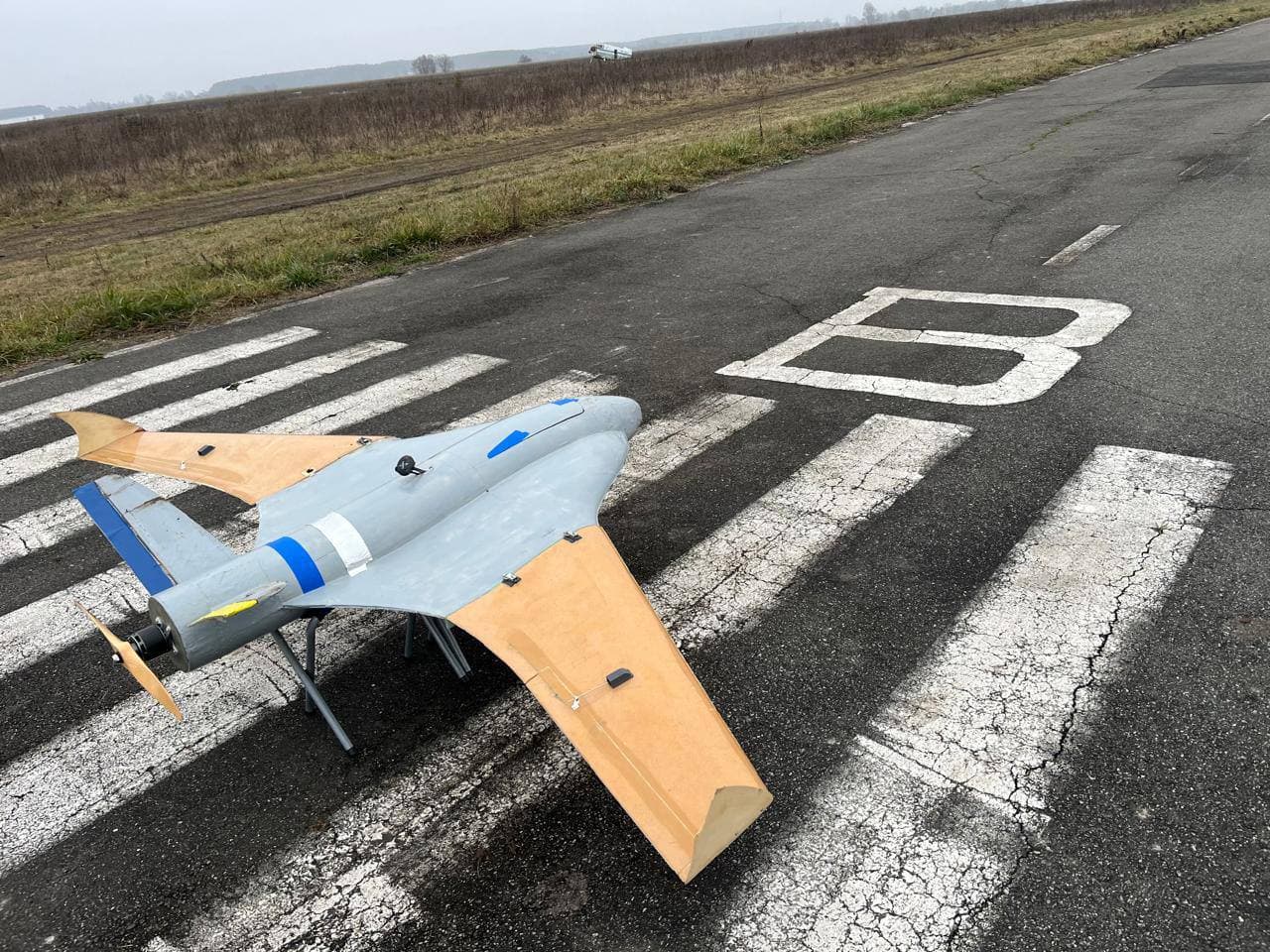

V-tail — angled ground view, wing and fuselage detail

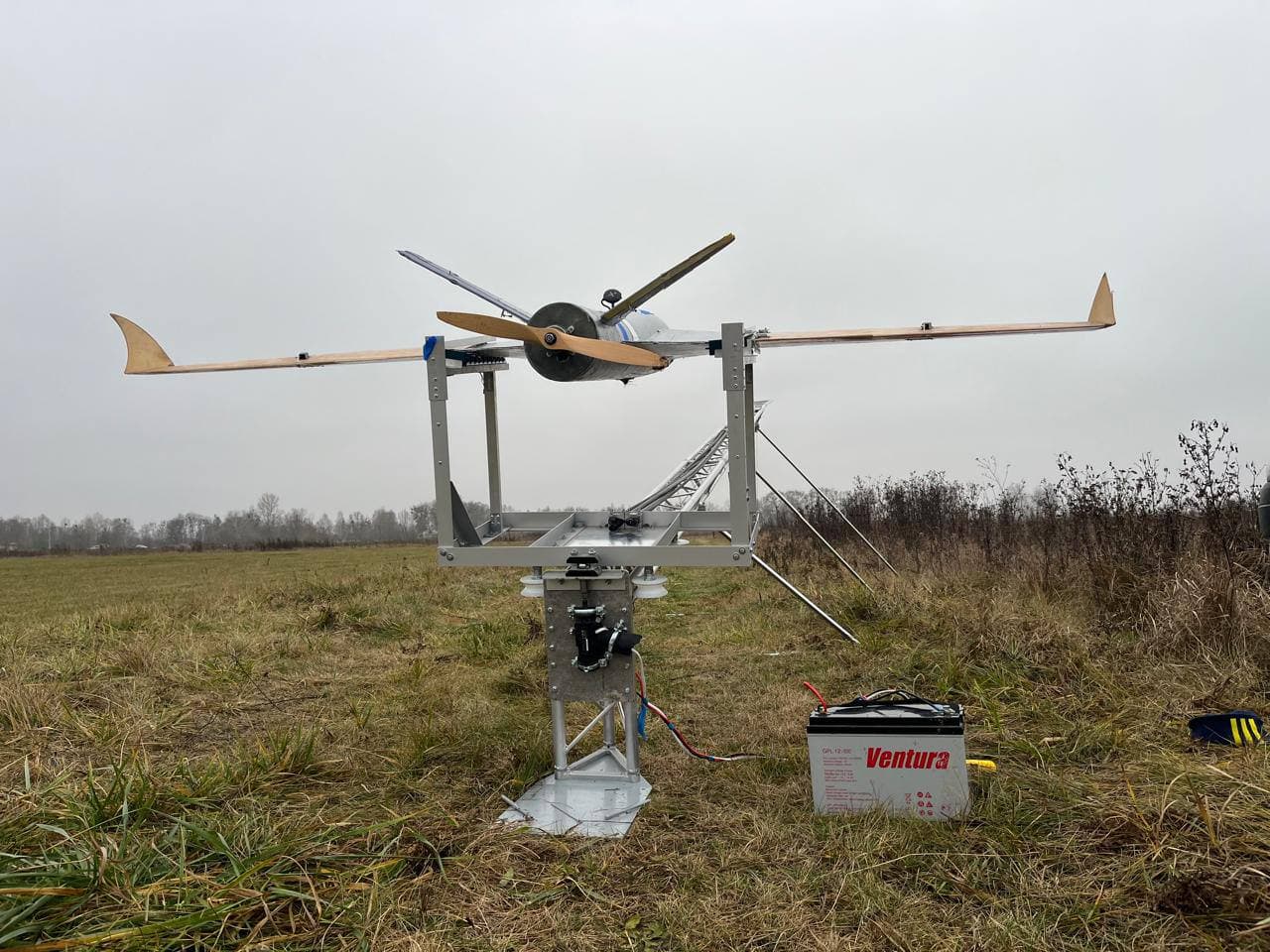

V-tail — front-on on portable catapult frame

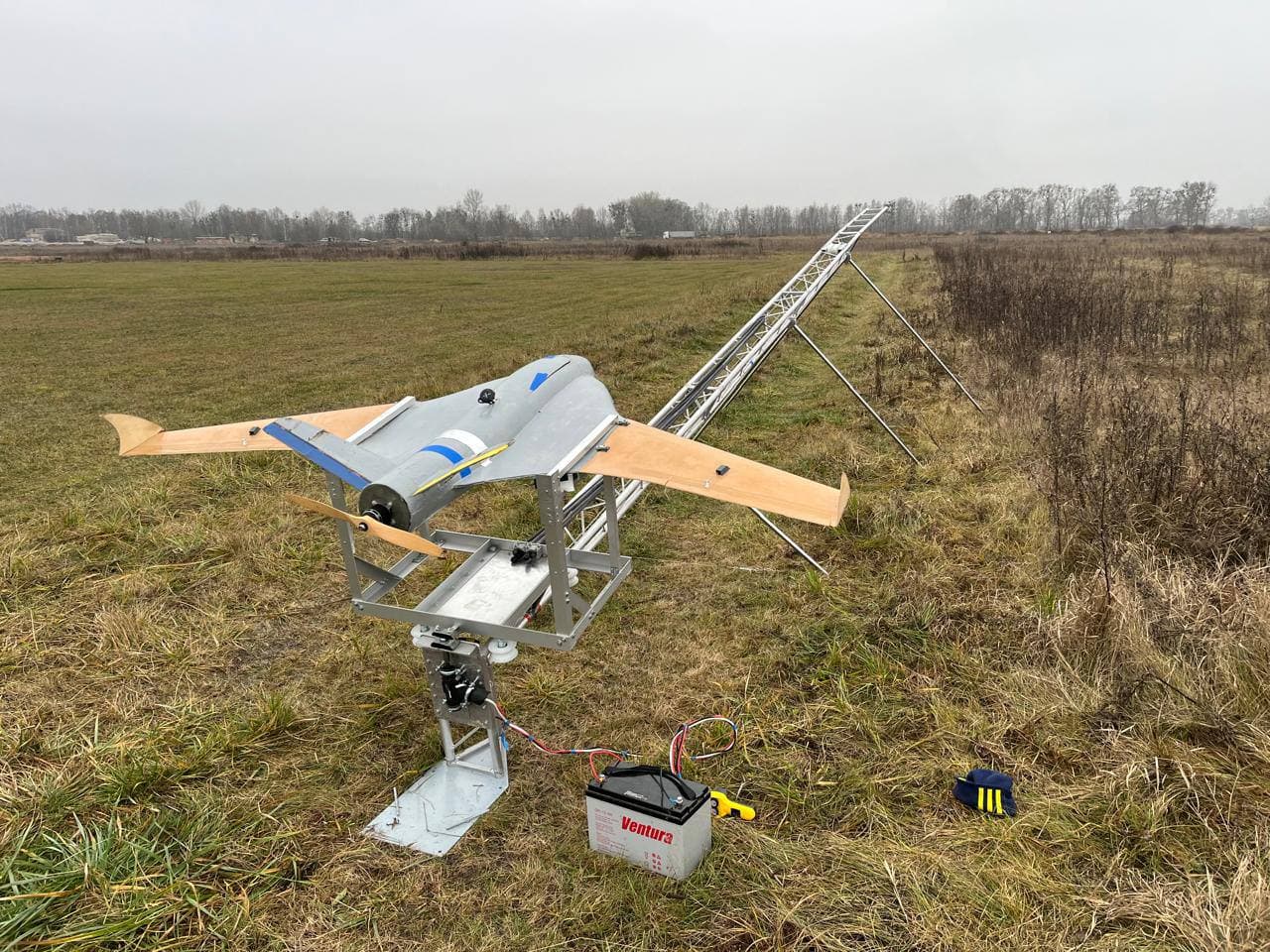

V-tail — catapult system with Ventura 12V battery

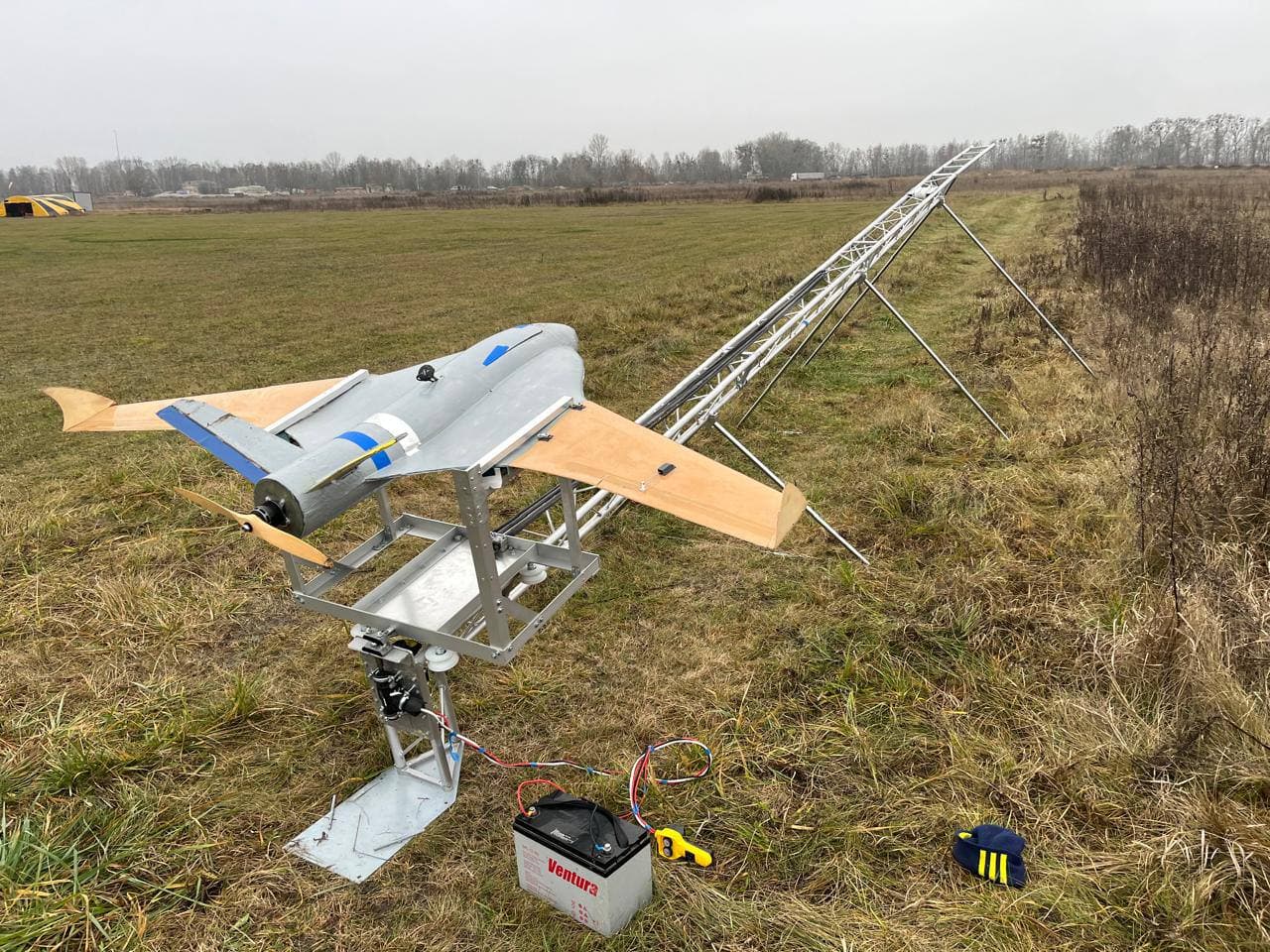

V-tail — catapult launch rail, extended bungee position

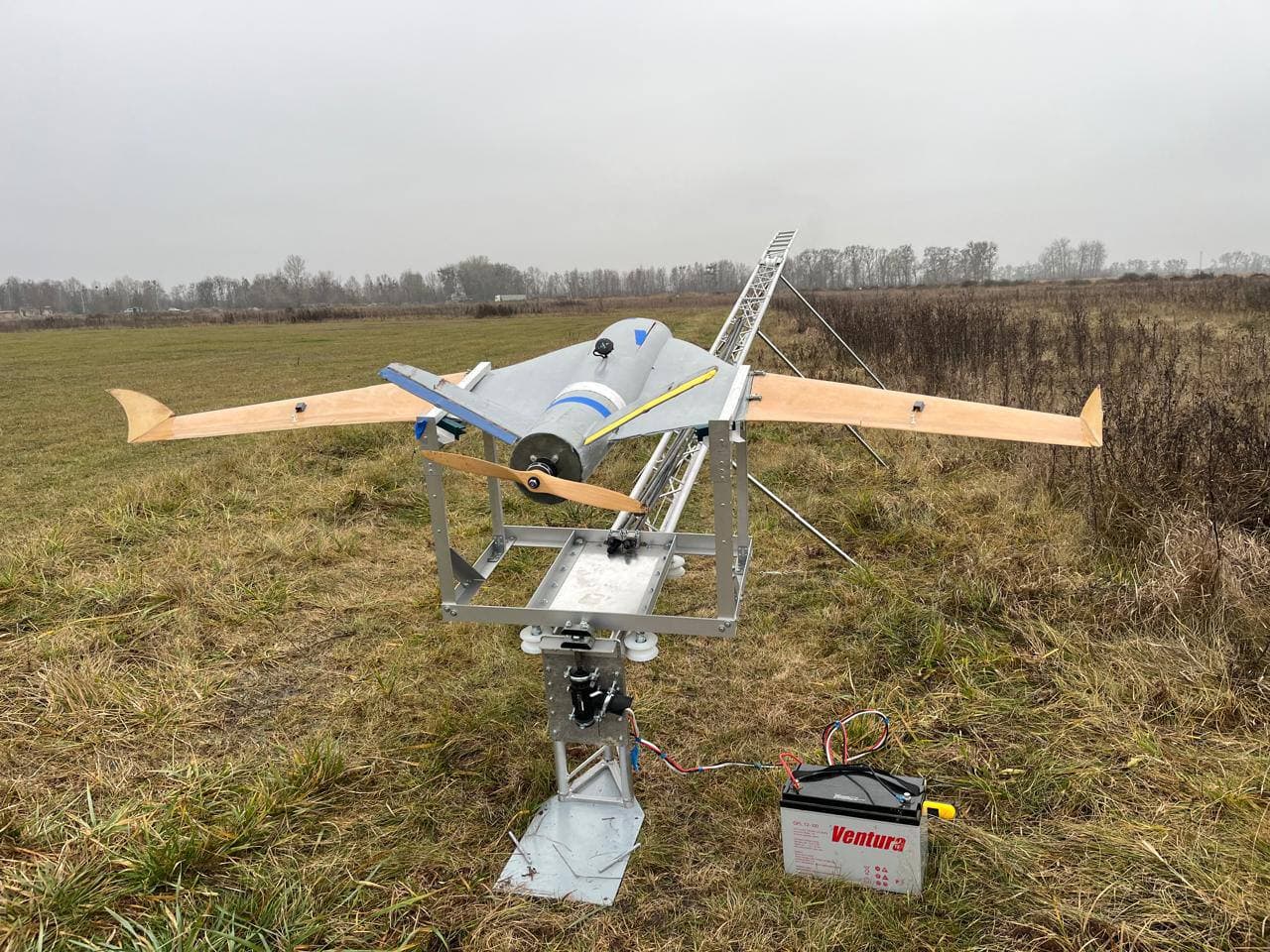

V-tail — field deployment, catapult profile side view

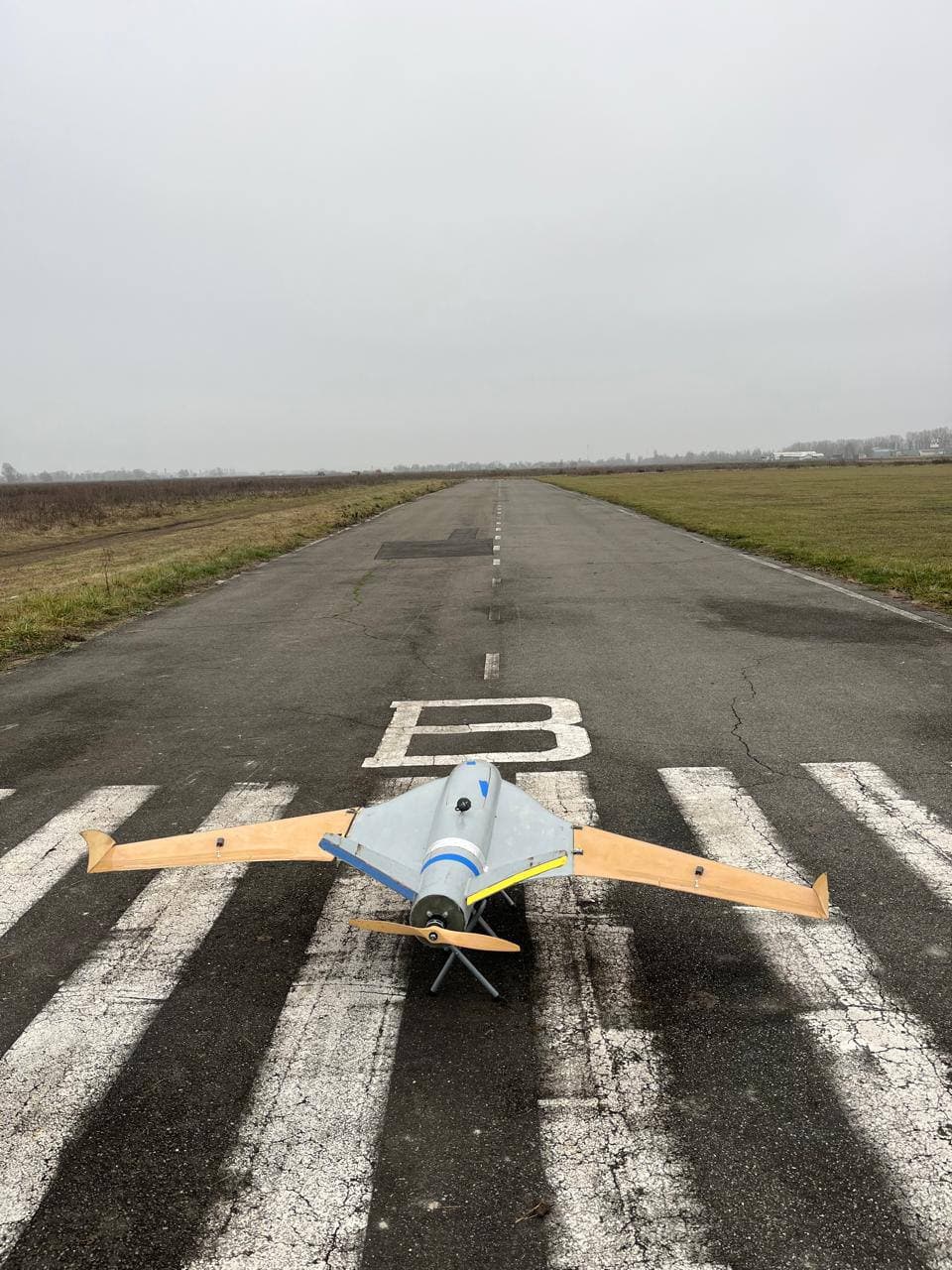

V-tail — pusher propeller and tail assembly, front view
V-tail — full platform, port-side runway view
V-tail — elevated angle, wing root and fuselage

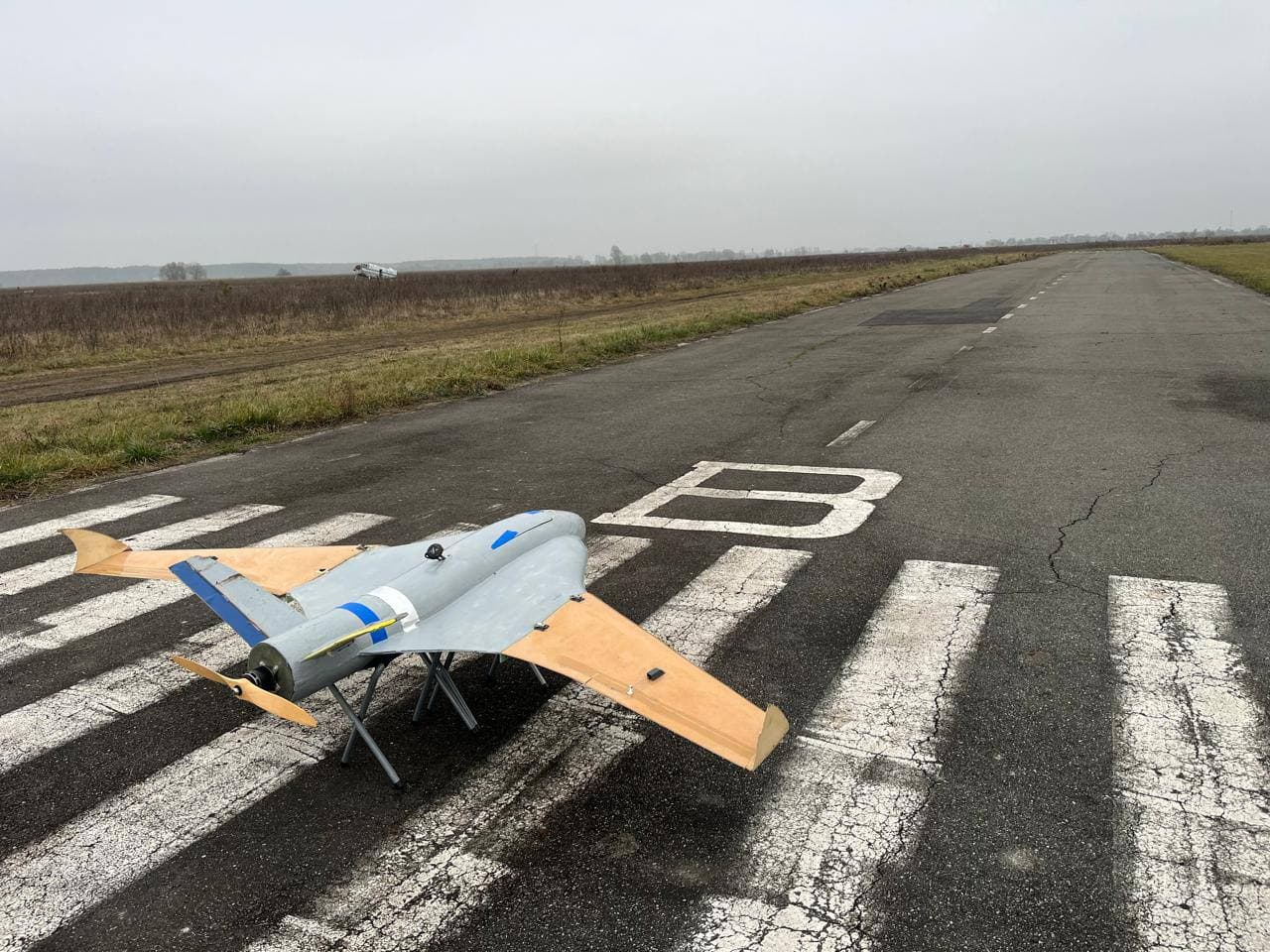

V-tail — runway, starboard-rear profile

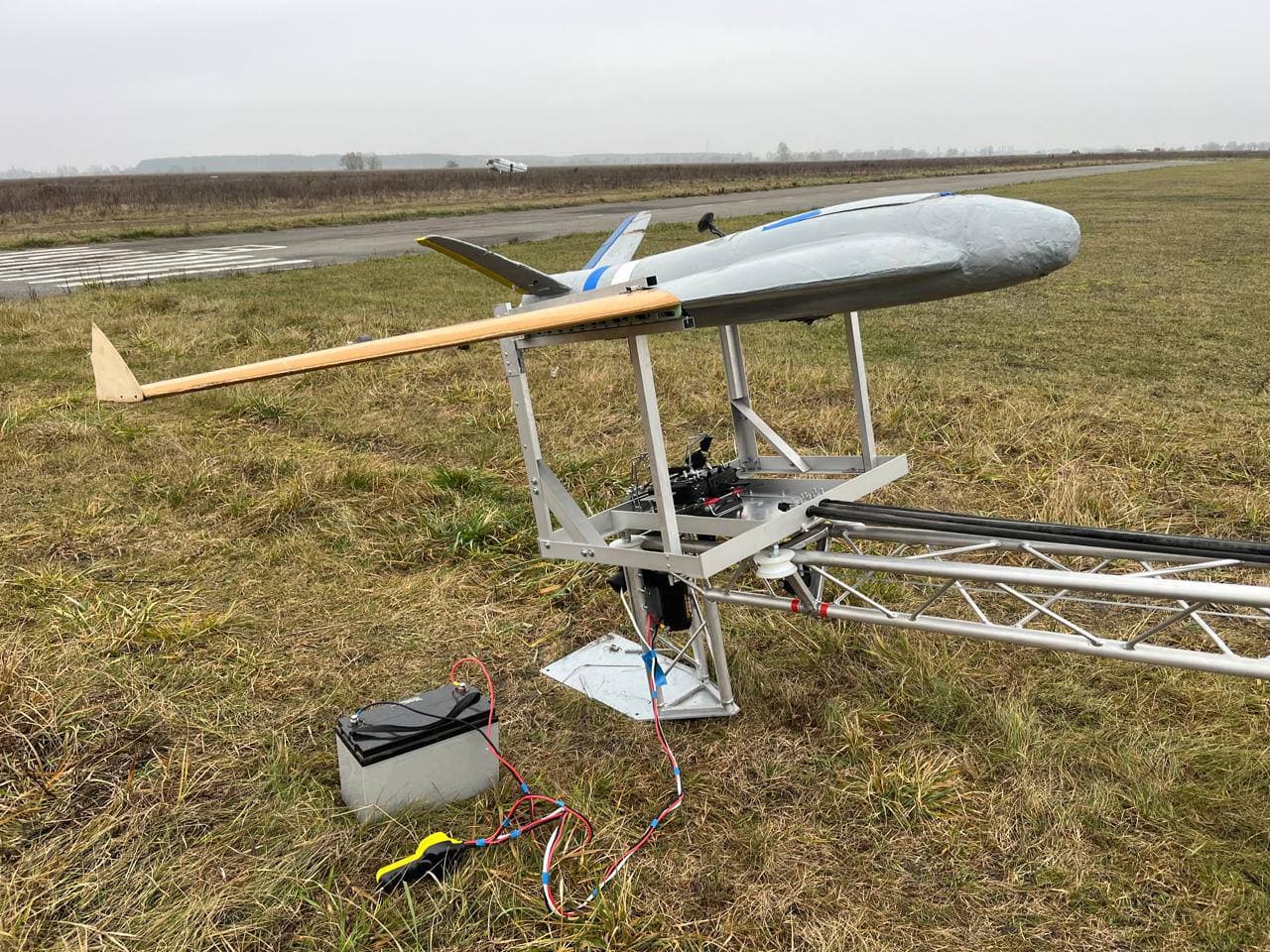

V-tail — launch-ready on catapult, nose-on angle
See It In Action
Watch the Pilon-Striker system perform catapult launch, sustained flight, and precision strike demonstration in field conditions.
Catapult deployment — operational in under 10 minutes from any terrain.
Fixed-wing endurance enables sustained patrol and target tracking.
Terminal guidance for precision engagement with operator confirmation.
Acquire Pilon-Striker
We work directly with military units, defense contractors, and government procurement offices. Submit your inquiry to receive full technical documentation, pricing, and delivery terms.
Secure Email
ymomelchuk@gmail.comAcquisition Request
Complete all fields. Inquiries from verified defense entities receive priority response.
